200m Underground Deep Water Borehole Drilling Machine

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Type:

Rotary Drilling Rig

Power Type:

Electric

Usage:

Water Well

Voltage:

220v

Dimension(L*W*H):

700*700*2900

Weight:

500kg

Applicable Industries:

Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining

Core Components:

Motor, Pump, Engine

Key Selling Points:

Portable

Drilling Depth:

80m

Drilling Diameter:

Within 120mm

Application:

Water Wells

Rod Change Method:

Full Automatic Screw Thread

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

Water Borehole Drilling Machine

200m Borehole Drilling Machine

Rotary Underground Drilling Machine

Product Description

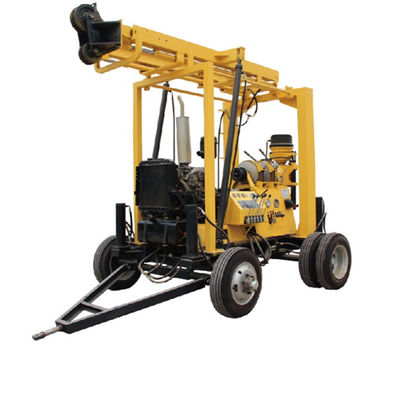

200m Underground Deep Water Borehole Drilling Machine

Product Description

HY-120 Electric type 40-200m deep portable undergroud mine water well drilling rigs for sales

Low price Electric type underground deep water Borehole Drilling Machine /water well rotary drilling rig for sale

This machine mainly used for geothermal drilling, farm irrigation , house yard, gardens and water well drilling, drilling diameter is 70-350mm, and drilling depth is 80m to 100m. It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 500mm and depth can be more than 100 meter.

The advantage

1. Light weight, energy saving.
2. Patented product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. One person operation, reduce the labor intensity ;
6. High efficiency and work fast.

7. Assure easily operation and long life service life, free maintainance.

Technical data

Model of drilling machine	HY-120
Drilling machine overall dimension(mm)	7007002900
Weight of Drilling machine (kg)	120
Drill rod diameter (mm)	42
Drill rod length(mm)	1500
Rod change method	Full automatic screw thread
Drilling depth(m)	80
Voltage (V)	220V
Motor power (KW)	DC60V, 1.5KW~2KW
Drilling method	Percussive and rotating type
Pump power (KW)	2.2KW
Drilling hole diameter(mm)	Within Ø 120mm
Hosting height(mm)	2000
Hosting capacity (kg)	500
